Studiomaster Vortex 15A
PROFESIONAL SPEAKER | STUDIOMASTERVortex is a range active moulded speaker cabinets. Featuring high performance 1400W (peak) power amplifiers, and a unique coaxial speaker configuration, the VORTEX series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets.
The Vortex series feature set is considerable with Bluetooth input input (with TWS), built in DSP, dual 35mm top hat sockets, 3 input channels, multiple M10 flying points, multiple carry handles and much more.
| MAX SPL | 128B |
| AMP PEAK | 1400W |
| AMP PGM | 700W |
| AMP RMS | 350W(300+50) |
| Cabinet type | 2-way coaxial active |
| Frequency response | 50Hz-20kHz |
| Input sensitivity | 0dBu |
| Coverage(H x V) | 80° x 80° |
| LF Driver | 15" /65 mm VC |
| HF Driver | 34mm VC / 1" throat |
| Crossover frequency | 2.2kHz |
| DSP-24bit | 5 modes (music/live/dj/speech/monitor), 3 band EQ, delay, volume |

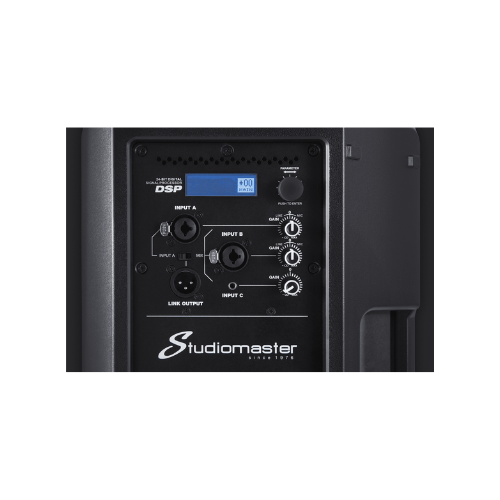

| Connection | 2 x XLR / JACK input+3.5mm, XLR output |
| Mounting | Dual top-hat, 5x M10 flying points |
| Dimension (W × H × D) | 410 x 660 x 350 mm |
| Net Weight | 19kg |
