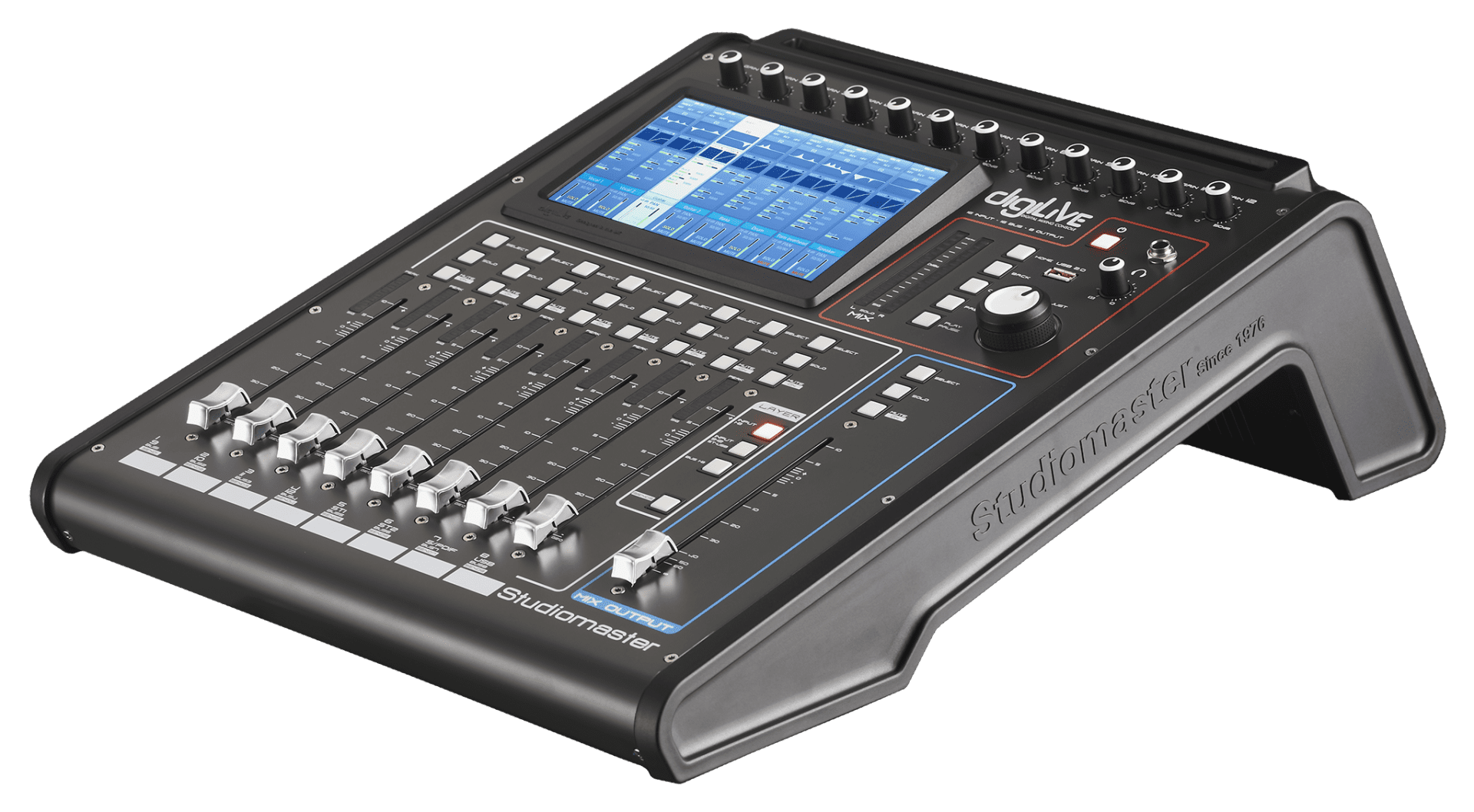

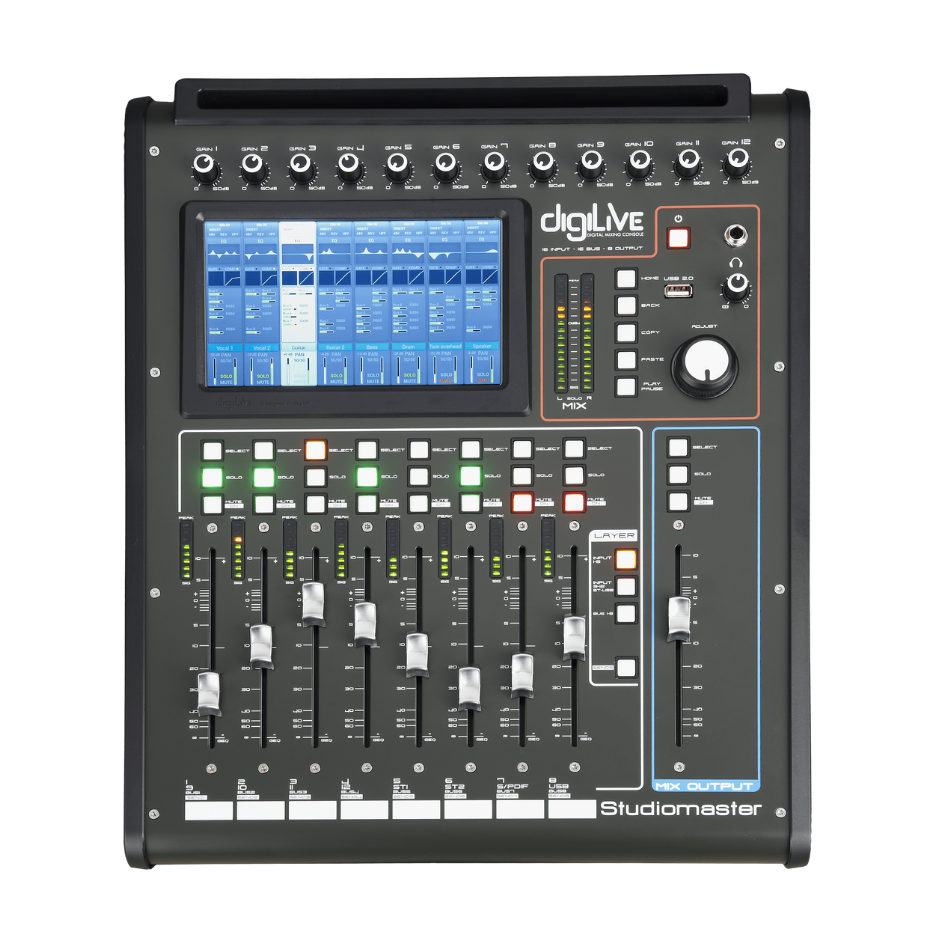

The DIGILIVE 16 offers ultra-compact digital audio mixer combines the power of a hardware mixer with the beauty and simplicity of a touch-screen control surface.

Specifications:

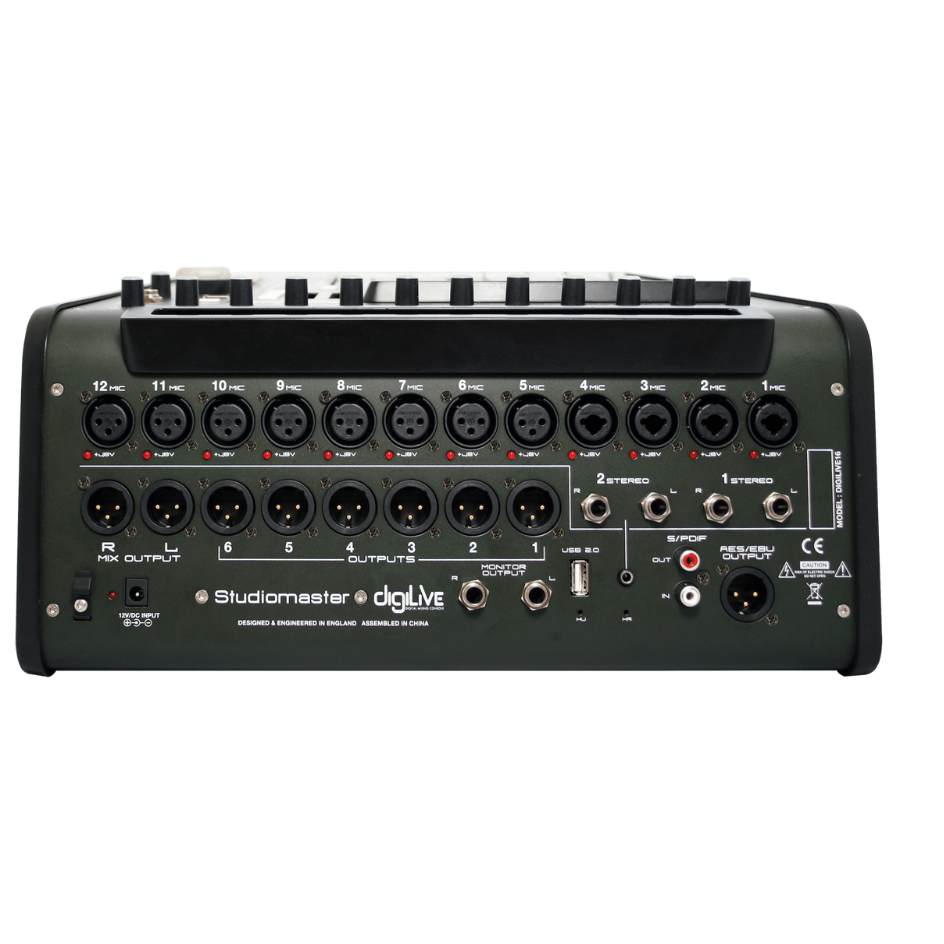

• Mic Inputs: 12 (8 × XLR, 4 × combo XLR/JACK)

• Line Inputs: 2 stereo channels (2 × 6.5mm stereo jacks, 1 × 3.5mm stereo jack in parallel)

• Master Output: 2 × balanced XLR (L/R)

• Assignable Outputs: 6 × balanced XLR

• Internal Busses: 16

• Stereo Monitor: 1 × TRS jack

• Headphone Output: 1 × TRS jack

• Screen: 7" HD touchscreen

• Faders: 8 × motorized 100mm + 1 × motorized 100mm for L/R mix

• Sample Frequency: 48kHz

• AD/DA Conversion: 192kHz, 24-bit

• DSP: 40-bit float point SHARC processor

• Remote Control: iPad compatible

• Effects: Up to 8 assignable modules (reverb, modulation, delay, 31-band GEQ with RTA)

• Digital I/O: AES/EBU output (XLR), S/PDIF input/output (RCA)

• USB Interface: 2 ports for playback/recording, scene storage, system updates

• Network: Wi-Fi via external module

• Power: 90–240V AC, 24V DC output

• Dimensions (W × H × D): 357 × 145 × 480 mm

• Weight: 5 kg
