The C2 Series is an ultra-compact, high-quality mixer designed to deliver professional features typically found in larger consoles within a durable, compact molded case. It includes 2-band EQ on all channels, auxiliary send for external effects, pan/balance control, and input gain and level adjustments. The output section provides stereo outputs on ¼” jacks, playback and recording via RCA phono and USB (C2S models), bargraph metering, and a headphone output. Ideal for home recording, live and location mixing, as well as commercial and corporate applications, the C2 Series is a versatile solution for situations requiring a compact mixing console.

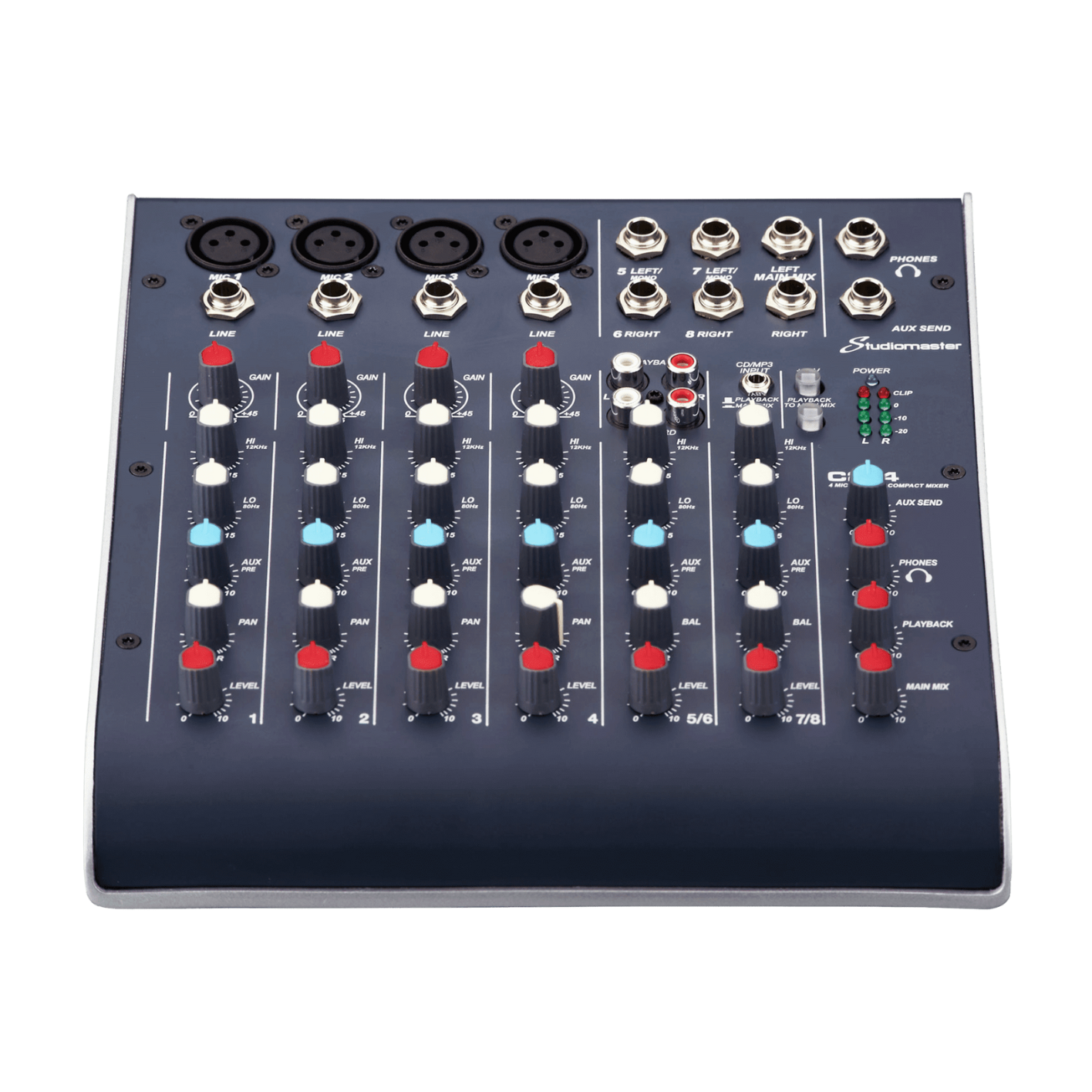

Studiomaster C2-4
MIXING AMPLIFIER | STUDIOMASTER| Channels | 8 |
| Mic Inputs | 4 |
| Stereo Inputs | 4 |
| Frequency Response | 20Hz-20kHz (+/-1dB) |
| Distortion | <0.08% @ -10dBu |
| Residual Noise | <-98dB |
| Mic Gain Range | 0dB to +45dB |
| Line Gain Range | -20dB to +25dB |
| Input Impedance - Line | 20k ohm balanced |
| - Playback+ CDMP3 | 24k ohm unbalanced |
| Crossover frequency | 120Hz |
| EQ Hi | +/-15dB @ 12kHz |
| EQ Lo | +/-15dB @ 80Hz |
| Main Mix Output | Main Mix Output |
| Aux Send Output | Main Mix Output |
| Record out Impedance | 1k ohm |
| Headphone out Impedance | 25k ohm |
| USB | N/A |
| Power Supply | Wall adaptor 100-240V ~ 50/60Hz |
| Dimension (W × H × D) | 244mm x 218mm x 75mm |
